Specifications

Product

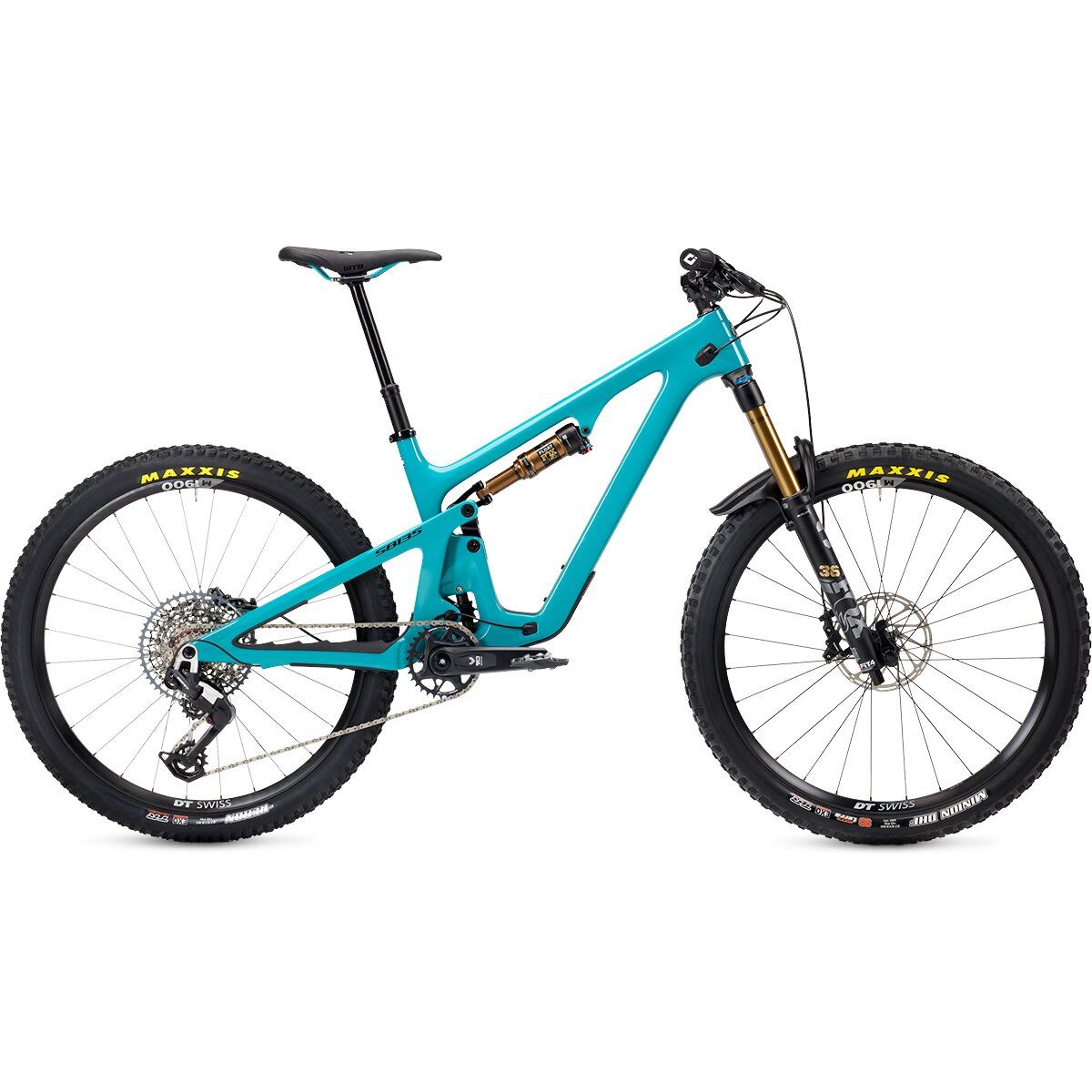

Yeti SB135 C2 Bike

Model Year

2023

Riding Type

Trail

Enduro / All-Mountain

Rider

Unisex

Sizes and Geometry

Size	XS	SM	MD	LG	XL
Top Tube Length	534mm	566mm	598mm	620mm	647mm
Head Tube Angle	65.5°	65.4°	65.4°	65.4°	65.4°
Head Tube Length	92mm	101mm	107mm	118mm	129mm
Seat Tube Angle	77.0°	77.0°	77.0°	77.0°	76.9°
Seat Tube Length	345mm	365mm	400mm	440mm	470mm
Bottom Bracket Height	337mm	337mm	337mm	337mm	337mm
Chainstay Length	429mm	431mm	433mm	435mm	437mm
Wheelbase	1128mm	1164mm	1199mm	1225mm	1257mm
Standover	675mm	678mm	714mm	718mm	722mm
Reach	400mm	430mm	460mm	479mm	504mm
Stack	583mm	592mm	597mm	606mm	616mm
Additional Info	• All specifications listed are with 150mm travel fork with 548mm axle-to-crown length and 37mm offset. • Bottom bracket heights are listed as "estimated" by Yeti.

Wheel Size

27.5" (650b)

Frame Material

Carbon Fiber

Frame Material Details

C Series carbon fiber front and rear triangles; molded chainstay, seatstay, and down tube protection

Rear Travel

135mm

Rear Shock

FOX FLOAT Performance, 210mm length x 55mm stroke
Option: FOX FLOAT Factory

Fork

FOX FLOAT 36 Performance, GRIP damper, 37mm offset
Option: FOX FLOAT 36 Factory

Fork Travel

150mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

Cane Creek 40 Integrated, 41mm upper, 52mm lower

Handlebar

Burgtec Ride Wide Enduro Alloy, 760mm width, 30mm rise, 35mm clamp diameter

Stem

Burgtec Enduro MK3, CNC alloy, 50mm length, 35mm bar clamp

Grips

ODI Elite Pro

Brakes

SRAM G2 R, 4-piston, SRAM CenterLine 180mm rotors

Brake Levers

SRAM G2 R

Drivetrain

Shifters

SRAM GX Eagle, 12-speed

Front Derailleur

None

Rear Derailleur

SRAM GX Eagle, 12-speed

ISCG Tabs

ISCG05

Chainguide

None

Cranks

SRAM GX Eagle DUB, 170mm length

Chainrings

SRAM GX Eagle, 30 tooth

Bottom Bracket

SRAM DUB, 73mm English/BSA threaded

Pedals

None

Chain

SRAM GX Eagle, 12-speed

Cassette

SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth

Rims

DT Swiss M1900, 30mm inner width

Hubs

DT Swiss M1900 wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) with XD driver

Spokes

DT Swiss M1900 wheelset

Tires

Front: Maxxis Minion DHF, EXO casing, 27.5" x 2.6"
Rear: Maxxis Rekon, EXO casing, 27.5" x 2.6"

Saddle

WTB Silverado Custom

Seatpost

OneUp V2 dropper
Drop: 150mm (XS/SM), 180mm (MD), 210mm (LG/XL)

Seatpost Diameter

31.6mm

Seatpost Clamp

Single bolt, 36.4mm

Rear Dropout / Hub Dimensions

12mm x 148mm (Boost)

Max. Tire Size

27.5" x 2.6"

Bottle Cage Mounts

One inside front triangle

Colors

Turquoise, Rhino, Cherry

Warranty

Lifetime frame and Switch Infinity Link, 1 year paint and finish

Weight

31 lb 0.3 oz (14070 g)

Miscellaneous

• Switch Infinity V2 four-bar rear suspension design
• Internally tunneled cable routing
• Compatible with SRAM UDH (Universal Derailleur Hanger)
• Compatible with mixed ("Mullet") wheels (29" front, 27.5" rear) with a 29" fork

Price

With FOX Performance suspension: $6,700.00

With FOX Factory suspension: $7,300.00
