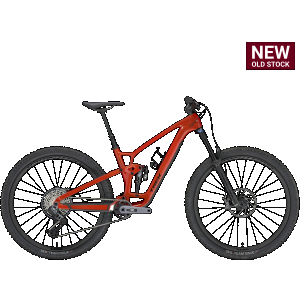

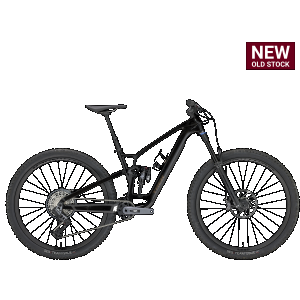

2024 Trek Fuel EX 9.8 GX AXS T-Type Gen 6 Bike

98 gx bag.png?VersionId=AO q BsB6Q2Bfxzviyy

98 gx detail.png?VersionId=3.WfSwZLXpYbMvsVUZjnilFpDwBv2

98 gx lava 02.png?VersionId=Zuc9QQRfBsrG

98 gx detail.png?VersionId=2 A5N2paRn28IxBD3wc95oXAAddfcy3

Trek


Free standard shipping on all bikes (continental U.S. only). Flat rate shipping to Hawaii and Alaska.	Free standard shipping on all bikes (continental U.S. only). Flat rate shipping to Hawaii and Alaska. $6,999.99	Buy
Fuel EX 9.8 GX AXS T-Type Gen 6	Fuel EX 9.8 GX AXS T-Type Gen 6 $6,999.99	Buy
Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes
Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes

Specifications

Product

Trek Fuel EX 9.8 GX AXS T-Type Gen 6 Bike

Model Year

2024

Riding Type

Enduro / All-Mountain

Trail

Rider

Unisex

Sizes and Geometry

XS 27.5" (High, Low)

SM 27.5" (High, Low)

SM 29" (High, Low)

MD (High, Low)

ML (High, Low)

LG (High, Low)

XL (High, Low)

Size	XS 27.5" (High, Low)	SM 27.5" (High, Low)	SM 29" (High, Low)	MD (High, Low)	ML (High, Low)	LG (High, Low)	XL (High, Low)
Top Tube Length	516mm, 516mm	550mm, 551mm	553mm, 554mm	583mm, 584mm	606mm, 607mm	626mm, 627mm	660mm, 662mm
Head Tube Angle	64.9°, 64.5°	64.8°, 64.5°	65.1°, 64.5°	65.1°, 64.5°	65.1°, 64.5°	65.1°, 64.5°	65.0°, 64.5°
Head Tube Length	95mm	95mm	95mm	100mm	100mm	105mm	120mm
Seat Tube Angle	78.9°, 78.6°	78.5°, 78.2°	79.2°, 78.6°	78.8°, 78.2°	78.0°, 77.5°	77.7°, 77.2°	77.1°, 76.6°
Seat Tube Length	360mm	380mm	380mm	410mm	420mm	435mm	470mm
Bottom Bracket Height	337mm (21mm drop), 332mm (25mm drop)	337mm (21mm drop), 332mm (25mm drop)	343mm (31mm drop), 335mm (38mm drop)	343mm (31mm drop), 335mm (38mm drop)	343mm (31mm drop), 335mm (38mm drop)	343mm (31mm drop), 335mm (38mm drop)	343mm (30mm drop), 335mm (38mm drop)
Chainstay Length	434mm, 435mm	434mm, 435mm	433mm, 435mm	433mm, 435mm	438mm, 440mm	438mm, 440mm	443mm, 445mm
Wheelbase	1144mm, 1145mm	1174mm, 1175mm	1185mm, 1186mm	1212mm, 1213mm	1232mm, 1233mm	1249mm, 1250mm	1286mm, 1287mm
Standover	720mm, 717mm	728mm, 723mm	738mm, 732mm	744mm, 737mm	751mm, 745mm	754mm, 748mm	767mm, 760mm
Reach	404mm, 400mm	434mm, 430mm	431mm, 425mm	456mm, 450mm	476mm, 470mm	491mm, 485mm	521mm, 515mm
Stack	572mm, 574mm	572mm, 574mm	608mm, 612mm	612mm, 617mm	612mm, 617mm	617mm, 621mm	630mm, 635mm
Additional Info	• XS has 27.5" wheels; SM is available with 27.5" or 29" wheels; MD-XL have 29" wheels. • Geometry adjustable via Mino Link flip chip in rocker link pivot and optional angle-adjust headset cups. • Optional angle-adjust headset cups allow +1° and -1° head tube angle adjustments. • All specifications listed are with 150mm travel fork with 533mm (27.5") or 561mm (29") axle-to-crown length and 44mm offset.

Wheel Size

27.5" (650b)

29"

Frame Material

Carbon Fiber

Frame Material Details

OCLV Mountain Carbon front and rear triangles, magnesium rocker link, molded seatstay and chainstay protection, two-piece dual-density bolt-on down tube protection

Rear Travel

140mm

Rear Shock

FOX FLOAT X Performance, 2-position compression lever, 185mm length x 55mm stroke

Fork

FOX FLOAT 36 Performance, EVOL, GRIP damper, 44mm offset, Kabolt thru-axle

Fork Travel

150mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

Integrated, cartridge bearings, compatible with optional angle-adjust headset cups

Handlebar

Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 820mm width, 27.5mm rise

Stem

Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0° rise
Virtual length: 35mm (XS/SM), 45mm (MD-XL)

Grips

Bontrager XR Trail Elite, nylon lock-on

Brakes

SRAM Code Bronze, 4-piston, SRAM CenterLine 6-bolt round-edge rotors (180mm [XS/SM] or 200mm [MD-XL] front, 180mm rear)

Brake Levers

SRAM Code Bronze Stealth, tool-free Reach Adjust

Drivetrain

Shifters

SRAM Eagle Pod Controller, 12-speed, AXS electronic wireless

Front Derailleur

None

Rear Derailleur

SRAM GX Eagle Transmission, 12-speed, AXS electronic wireless

ISCG Tabs

ISCG05

Chainguide

None

Cranks

SRAM GX Eagle Transmission Alloy DUB, 170mm length

Chainrings

SRAM GX Eagle Transmission, 30 tooth

Bottom Bracket

SRAM DUB MTB Wide, 73mm English/BSA threaded

Pedals

None

Chain

SRAM GX Eagle Transmission, 12-speed

Cassette

SRAM GX Eagle Transmission XS-1275, 12-speed, 10-52 tooth

Rims

Bontrager Line Elite 30, OCLV Mountain Carbon, tubeless ready

Hubs

Bontrager Line Elite wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with Rapid Drive 108 freehub and XD driver

Spokes

Bontrager Line Elite wheelset

Tires

Bontrager SE5 Team Issue, Core Strength casing, aramid bead, 120 TPI, tubeless ready, 2.5"

Saddle

Bontrager Arvada, austenite rails, 138mm width

Seatpost

Bontrager Line Elite dropper, MaxFlow
Drop: 100mm (XS/SM), 150mm (MD/ML), 170mm (LG), 200mm (XL)

Seatpost Diameter

34.9mm

Seatpost Clamp

Single bolt

Rear Dropout / Hub Dimensions

12mm x 148mm (Boost)

Max. Tire Size

2.5"

Bottle Cage Mounts

One inside front triangle

Colors

Deep Smoke, Lava

Warranty

Lifetime frame and rims; 2 years Trek/Bontrager parts, suspension linkage components, and paint/decals

Weight

31 lb 10.2 oz (14,350 g)

Miscellaneous

• ABP (Active Braking Pivot) rear suspension design
• XS has 27.5" wheels; SM is available with 27.5" or 29" wheels; MD-XL have 29" wheels
• 29" versions compatible with mixed ("Mullet") wheel setups (29" front, 27.5" rear)
• Geometry adjustable via Mino Link flip chip in rear rocker link pivot
• Geometry adjustable via optional angle-adjust headset cups, for +1° and -1° head tube angle adjustments
• Internal frame storage compartment in down tube; includes Bontrager BITS storage bag
• Guided internal cable routing
• SRAM UDH (Universal Derailleur Hanger)
• Includes Bontrager TLR tubeless rim strips, valve stems, and sealant
• Includes SRAM AXS PowerPack battery charger
• Weight given for size MD set up tubeless

Rear suspension leverage rate adjustable via flip chip at lower shock mount:
• Less progressive setting intended for a plusher feel perfect for rugged trails with square-edge bumps
• More progressive setting intended for hitting big features without bottom-out, or to run a coil shock

Price

$6,999.99
