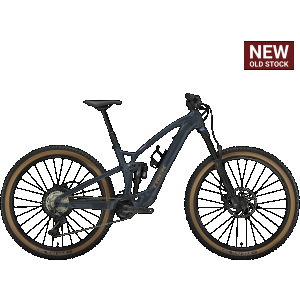

2024 Trek Fuel EXe 8 XT E-Bike

xt mercury 01.png?VersionId=K3UvG9INaRPKABw0Y2O
xt mercury 01.png?VersionId=.sTocuO36sleot5Dq.vqVG5VuW Q j
xt mercury 02
xt navy 01
xt navy 02
xt detail 01
xt detail 02
xt detail 03
xt detail 04
xt detail 05
xt detail 06
xt detail 07.png?VersionId=xKQOBIXWQHkagftOvZsJ0x3BqzKUF
xt detail 08.png?VersionId=fpi r2fhr
xt mercury 01.png?VersionId=K3UvG9INaRPKABw0Y2O xt mercury 02 xt navy 01 xt navy 02 xt detail 01 xt detail 02.png?VersionId=99FbDJyRxpHOkYpeq3 fuDrkliP xt detail 03.png?VersionId=y6I2YZ6t1drd4jQr xt detail 04 xt detail 05.png?VersionId=Piq.5bJi9O7wC0mgLWPkvVEh4c xt detail 06 xt detail 07 xt detail 08.png?VersionId=VhK58Q5Zl1oufwKALA65jL3MP5Zp
Related:
Trek
Where To Buy
Free standard shipping on all bikes (continental U.S. only).
Flat rate shipping to Hawaii and Alaska.
Free standard shipping on all bikes (continental U.S. only).
Flat rate shipping to Hawaii and Alaska.
$9,299.99

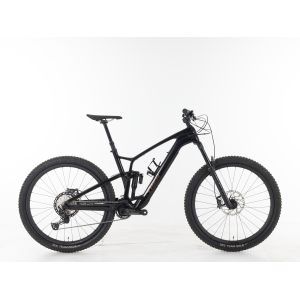

Fuel EXe 9.8 XT
$9,299.99
Fuel EXe 8 XT
$6,599.99

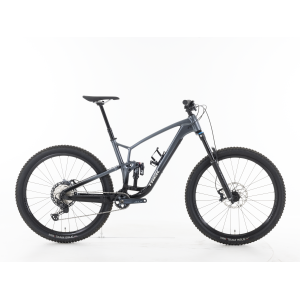

Fuel EX 8 Gen 6
$3,999.99
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.

Specifications

Product
Trek Fuel EXe 8 XT E-Bike
Model Year
2024
Riding Type
Enduro / All-Mountain
Trail
Rider
Unisex
Sizes and Geometry
SM (High, Low)
MD (High, Low)
LG (High, Low)
XL (High, Low)
Wheel Size
29"
E-Bike Class
Class 1: Pedal Assist (Pedelecs)
Motor
TQ HPR50, Harmonic Pin Ring drive transmission, 50 Nm max torque, 300W peak power, 250W maximium continuous power
Battery
TQ, integrated, removable
Optional 160 Wh range extender battery fits into included standard water bottle cage with built-in retention strap
Battery Capacity
360 Wh
Display/Remote
Display: TQ LED, top tube integrated, 2" screen, Bluetooth and ANT+ connectivity
Display screens: battery/ride time, range/ride time, speed/average speed, rider power/motor power
Remote: TQ 2-button
Modes
Three dynamic assist modes plus walk assist
Max Speed with Assist
EU and APAC: 15.5 mph (25 km/h)
All other countries: 20 mph (32.2 km/h)
Frame Material
Aluminum
Frame Material Details
Alpha Platinum Aluminum; alloy rocker link; molded chainstay and down tube protection
Rear Travel
140mm
Rear Shock
FOX FLOAT X Performance, 2-position compression lever, 205mm length x 60mm stroke
Fork
FOX FLOAT 36 Rhythm, EVOL, GRIP damper, 44mm offset, Kabolt thru-axle
Fork Travel
150mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
Integrated cartridge bearings, angle adjust cup compatible (sold separately)
Handlebar
Bontrager Line, alloy, 780mm width, 27.5mm rise, 35mm clamp diameter
Stem
Bontrager Elite, 45mm length, 0° rise, 35mm bar clamp
Grips
Bontrager XR Trail Elite, nylon lock-on
Brakes
Shimano Deore M6120, 4-piston, Shimano RT66 6-bolt 203mm rotors
Brake Levers
Shimano Deore M6100
Drivetrain
1x
Shifters
Shimano Deore XT M8100, 12-speed
Front Derailleur
None
Rear Derailleur
Shimano Deore XT M8100, 12-speed, long cage
Chainguide
Upper slider
Cranks
e*thirteen e*spec Plus, 165mm length
Chainrings
e*thirteen e*spec, 32 tooth, alloy
Pedals
None
Chain
Shimano Deore XT M8100, 12-speed
Cassette
Shimano Deore XT M8100, 12-speed, 10-51 tooth
Rims
Bontrager Line Comp 30 wheelset, tubeless ready
Hubs
Bontrager Line Comp wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with Rapid Drive 108 freehub and MICRO SPLINE driver
Spokes
Bontrager Line Comp wheelset
Tires
Bontrager XR5 Team Issue, Inner Strength casing, aramid bead, 60 TPI, tubeless ready, 29" x 2.5"
Saddle
Bontrager Arvada, hollow chromoly rails, 138mm width
Seatpost
Bontrager Line dropper, MaxFlow
Drop: 100mm (SM), 150mm (MD), 170mm (LG/XL)
Seatpost Diameter
34.9mm
Seatpost Clamp
Single bolt
Rear Dropout / Hub Dimensions
12mm x 148mm (Boost)
Max. Tire Size
29" x 2.5"
Bottle Cage Mounts
One inside front triangle, plus accessory mounts under top tube
Colors
Nautical Navy, Satin Mercury
Warranty
Lifetime frame and wheels; 2 years Trek/Bontrager parts, suspension linkage components, and paint/decals
Weight
44 lb 5 oz (20,100 g)
Miscellaneous
• ABP (Active Braking Pivot) rear suspension design
• Geometry adjustable via Mino Link flip chip in rear rocker link pivot
• Head tube angle adjustable via optional headset cups (sold separately)
• Compatible with mixed ("Mullet") wheel setups (29" front, 27.5" rear) with Mino Link flip chip in High position
• Internal cable routing
• Compatible with SRAM UDH (Universal Derailleur Hanger)
• Trek Central mobile app provides motor assist tuning, range monitoring and calculation, navigation and tracking, suspension and tire pressure recommendations, pressure monitoring with AirWiz and TireWiz sensors, and integrates with third-party apps
• Weight given for size MD set up tubeless
• Includes TQ 4A battery charger
• Includes Bontrager TLR tubeless tire sealant, rim strips, and valves
Price
$6,599.99
