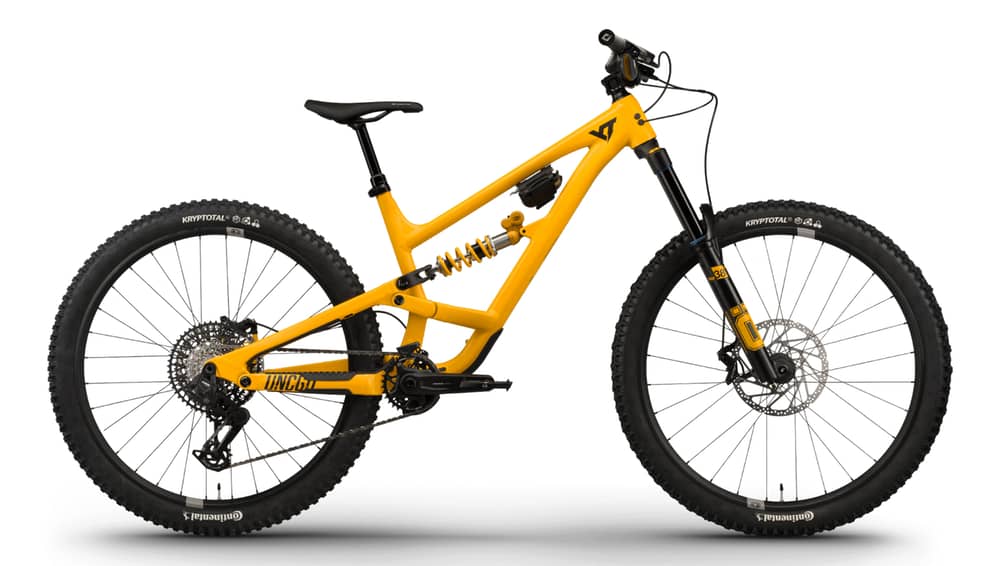

2025 YT Capra 29 Core 3 AL Bike

3 al yellow 01.png?VersionId=wsYhWN2m4Ct58R2oKnJH2DYdERd85q

3 al yellow 02.png?VersionId=.wsA2WZkWLZMH44SQUI

3 al yellow 03.png?VersionId=Cz5O3iHVUi 7IuGwkKBDWVLzu

chip.png?VersionId=1x3k.gWLAWdijEz0wnEiH8C1tIr

3 al yellow 03.png?VersionId=aPX.wtYyMvsFuiVwUX3ZxE

3 al black 03.png?VersionId=lA7jif5xnak1GGX

Where To Buy
	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes
	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes

Specifications

Product

YT Capra 29 Core 3 AL Bike

Model Year

2025

Riding Type

Enduro / All-Mountain

Freeride / Bike Park

Rider

Unisex

Sizes and Geometry

SM (low, high)

MD (low, high)

LG (low, high)

XL (low, high)

XXL (low, high)

Size	SM (low, high)	MD (low, high)	LG (low, high)	XL (low, high)	XXL (low, high)
Top Tube Length	563mm	586mm	606mm	629mm	652mm
Head Tube Angle	64.2°, 64.5°	64.2°, 64.5°	64.2°, 64.5°	64.2°, 64.5°	64.2°, 64.5°
Head Tube Length	100mm	110mm	110mm	120mm	130mm
Seat Tube Angle	77.7°, 78.0°	77.6°, 77.9°	77.6°, 77.9°	77.6°, 77.9°	77.5°, 77.8°
Seat Tube Length	395mm	420mm	445mm	470mm	495mm
Bottom Bracket Height	349mm (27mm drop), 354mm (22mm drop)	349mm (27mm drop), 354mm (22mm drop)	349mm (27mm drop), 354mm (22mm drop)	349mm (27mm drop), 354mm (22mm drop)	349mm (27mm drop), 354mm (22mm drop)
Chainstay Length	438mm	438mm	438mm	443mm	443mm
Wheelbase	1204mm	1228mm	1248mm	1277mm	1302mm
Standover	745mm	737mm	735mm	746mm	743mm
Reach	427mm	447mm	467mm	487mm	507mm
Stack	625mm	634mm	634mm	643mm	652mm
Additional Info	• Geometry adjustable via flip chip in rear shock yoke mount • All specifications listed are with 170mm travel fork

Wheel Size

29"

Frame Material

Aluminum

Frame Material Details

Cold-forged hydro-formed multi-butted alloy, molded TPE seatstay and chainstay protection, bolt-on PA66 down tube shield

Rear Travel

165mm

Rear Shock

Öhlins TTX22 M.2, high/low-speed compression adjust, low-speed rebound adjust, 230mm length x 65mm stroke
Spring rates: 343lbs (SM), 365lbs (MD), 388lbs (LG), 411lbs (XL), 434lbs (XXL)

Fork

Öhlins RXF38 M.2, high/low-speed compression adjust, low-speed rebound adjust, 44mm offset

Fork Travel

170mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

Cane Creek Series 40, ZS44 upper, ZS56 lower

Handlebar

Title AH1, 800mm width, 38mm rise, 8° backsweep, 5° upsweep, 35mm clamp diameter

Stem

Title ST1, 40mm length, 0° rise, 35mm bar clamp

Grips

ODI Elite Motion V2.1, lock-on

Brakes

TRP DH-R EVO, 4-piston, TRP 2.3mm-thick rotors (220mm front, 203mm rear)

Brake Levers

TRP DH-R EVO, tool-free reach adjust

Drivetrain

Shifters

SRAM Eagle Pod Controller, 12-speed, AXS electronic wireless

Front Derailleur

None

Rear Derailleur

SRAM S1000 Eagle Transmission, 12-speed, AXS electronic wireless

ISCG Tabs

ISCG05

Chainguide

e*thirteen upper slider with bashguard

Cranks

SRAM S1000 Eagle Transmission Alloy DUB, 170mm length

Chainrings

SRAM S1000 Eagle Transmission, 32 tooth

Bottom Bracket

SRAM DUB MTB Wide, 73mm English/BSA threaded

Pedals

None

Chain

SRAM Eagle Transmission Flattop, 12-speed

Cassette

SRAM GX Eagle Transmission XS-1275, 12-speed, 10-52 tooth

Rims

Crankbrothers Synthesis Enduro 2 Alloy
Inner width: 31.5mm (front), 29.5mm (rear)

Hubs

Crankbrothers Synthesis Enduro 2 wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with XD driver

Spokes

Crankbrothers Synthesis Enduro 2 wheelset

Tires

Front: Continental Kryptotal FR, Super Soft compound, Enduro casing, 29" x 2.4"
Rear: Continental Kryptotal RE, Soft compound, Enduro casing, 29" x 2.4"

Saddle

SDG Bel-Air 3.0, Lux-Alloy rails, 140mm width, YT Custom design

Seatpost

YT Postman V2 dropper, 5/10/20mm adjustable travel
Drop: 125mm (SM), 150mm (MD), 170mm (LG/XL), 200mm (XXL)

Seatpost Diameter

31.6mm

Seatpost Clamp

Single bolt

Rear Dropout / Hub Dimensions

12mm x 148mm (Boost)

Max. Tire Size

Bottle Cage Mounts

One inside front triangle, plus accessory mounts under top tube

Colors

Drip Yellow, Black Magic

Warranty

5 years frame

Weight

37 lb 4.1 oz (16900 g)

Miscellaneous

• V4L (Virtual 4-Link) rear suspension design
• Internal cable routing
• Geometry adjustable via flip chip in rear shock yoke mount
• SRAM UDH (Universal Derailleur Hanger)
• Weight given for size SM set up tubeless
• Includes Thirstmaster 6000 620ml (21oz) water bottle and side-load cage
• European price: 4499 EUR
• UK price: 4499 GBP
• Canadian price: 6299 CAD

Price

$4,499.00
