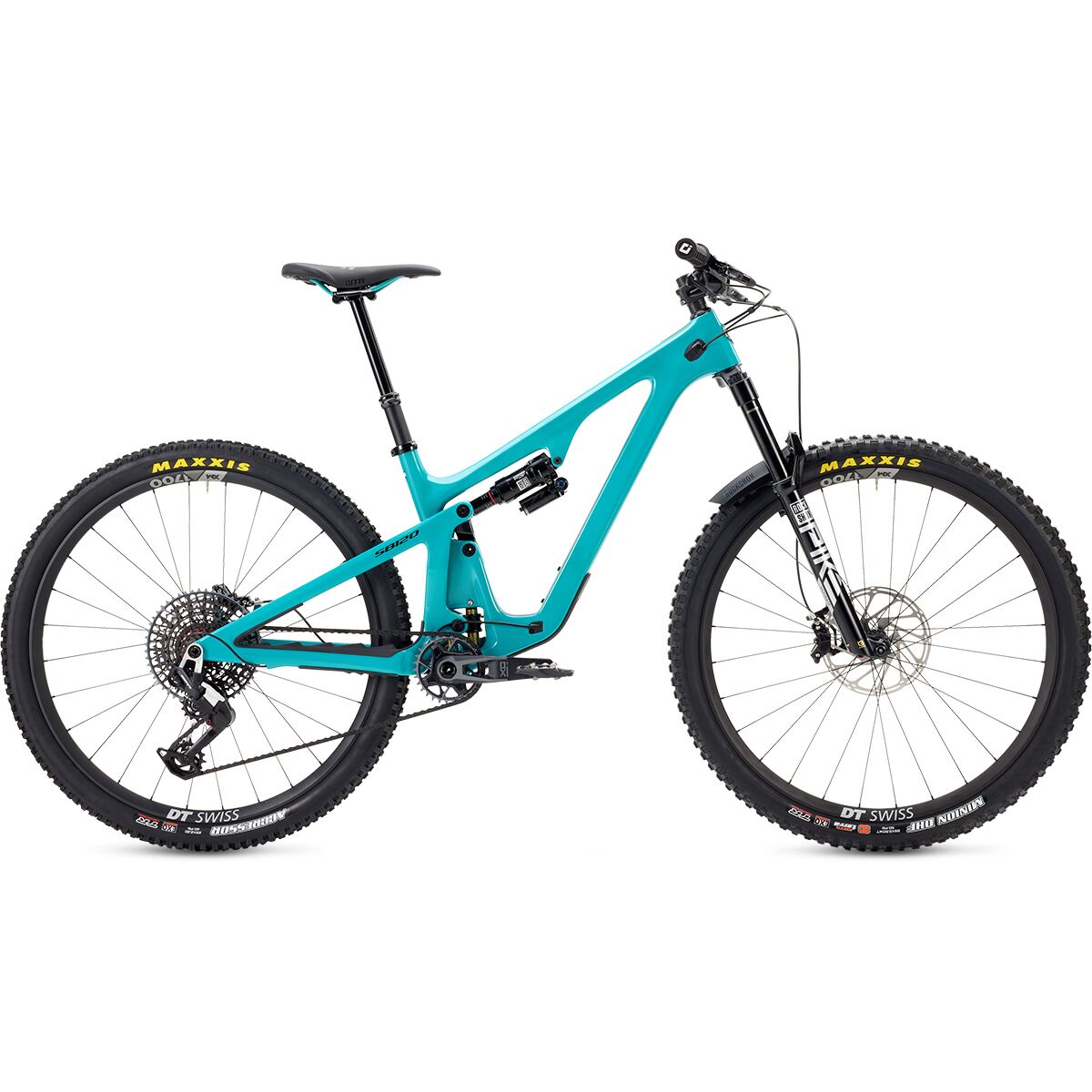

2025 Yeti SB120 LR T2 Bike

lr t2 raw.png?VersionId=eV7rRKebgaB1ca z. j5jNbYI

Where To Buy
	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes
	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes

Specifications

Product

Yeti SB120 LR T2 Bike

Model Year

2025

Riding Type

Cross Country

Trail

Rider

Unisex

Sizes and Geometry

XXL

Size	XS	SM	MD	LG	XL	XXL
Top Tube Length	541mm	573mm	604mm	626mm	654mm	673mm
Head Tube Angle	66.2°	66.2°	66.2°	66.2°	66.2°	66.2°
Head Tube Length	92mm	98mm	104mm	115mm	126mm	147mm
Seat Tube Angle	76.1°	76.2°	76.2°	76.2°	76.2°	76.2°
Seat Tube Length	345mm	365mm	400mm	440mm	470mm	485mm
Bottom Bracket Height	335mm	337mm	337mm	337mm	337mm	337mm
Chainstay Length	433mm	435mm	437mm	439mm	441mm	443mm
Wheelbase	1125mm	1160mm	1194mm	1220mm	1252mm	1277mm
Standover	708mm	712mm	717mm	721mm	723mm	728mm
Reach	392mm	422mm	452mm	472mm	497mm	512mm
Stack	606mm	612mm	617mm	627mm	638mm	658mm
Additional Info	• All specifications listed are with 140mm travel fork with 551mm axle-to-crown length and 44mm offset • Bottom bracket heights are listed as "estimated" by Yeti

Wheel Size

29"

Frame Material

Carbon Fiber

Frame Material Details

TURQ Series carbon fiber front and rear triangles; molded chainstay, seatstay, and down tube protection

Rear Travel

120mm

Rear Shock

RockShox Super Deluxe Ultimate, 190mm length x 45mm stroke

Fork

RockShox Pike Ultimate, 35mm stanchions

Fork Travel

140mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

Cane Creek 40 Integrated, 41mm upper, 52mm lower

Handlebar

Yeti Carbon, 780mm width, 35mm clamp diameter

Stem

Burgtec Enduro MK3, 50mm length, 35mm bar clamp

Grips

ODI Elite Pro

Brakes

SRAM Code RSC, 4-piston, SRAM CenterLine rotors (200mm front, 180mm rear)

Brake Levers

SRAM Code RSC, tool-free reach adjust and contact point adjust

Drivetrain

Shifters

SRAM X01 Eagle, 12-speed

Front Derailleur

None

Rear Derailleur

SRAM X01 Eagle, 12-speed

ISCG Tabs

2-bolt ISCG05

Chainguide

None

Cranks

SRAM X1 Eagle Carbon DUB, 170mm length

Chainrings

SRAM X1 Eagle, 30 tooth

Bottom Bracket

SRAM DUB, 73mm English/BSA threaded

Pedals

None

Chain

SRAM GX Eagle, 12-speed

Cassette

SRAM X01 Eagle XG-1295, 12-speed, 10-52 tooth

Rims

DT Swiss XM 1700, 30mm inner width
Option: DT Swiss EXC 1501 Carbon

Hubs

DT Swiss XM 1700 wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) with XD driver

Spokes

DT Swiss XM 1700 wheelset

Tires

Front: Maxxis Minion DHF, 3C MaxxTerra compound, EXO casing, 29" x 2.5"
Rear: Maxxis Aggressor, Dual compound, EXO casing, 29" x 2.3"

Saddle

WTB Silverado Custom

Seatpost

FOX Transfer dropper
Drop: 125mm (XS), 150mm (SM), 175mm (MD), 200mm (LG-XXL)

Seatpost Diameter

31.6mm

Seatpost Clamp

Single bolt, 36.4mm

Rear Dropout / Hub Dimensions

12mm x 148mm (Boost)

Max. Tire Size

29" x 2.6"

Bottle Cage Mounts

One inside front triangle

Colors

Turquoise, Lichen, Raw Carbon

Warranty

Lifetime frame and Switch Infinity Link, 1 year paint and finish

Weight

29 lb 13.9 oz (13549 g)

Miscellaneous

• Switch Infinity V2 rear suspension design
• Internally tunneled cable routing
• SRAM UDH (Universal Derailleur Hanger)
• Frame weight: 6.66lbs (3021 g)

Price

Standard: $7,400.00

With DT Swiss EXC 1501 Carbon wheelset: $8,400.00
