2025 Trek Top Fuel 9.8 XT Gen 4 Bike

98 xt dark 01.png?VersionId=
98 xt dark 01.png?VersionId=rG3zRjEJFHQ . PBkqnqRD9c
98 xt dark 02
98 xt lunar 01
98 xt lunar 02
98 xt axinite 01
98 xt axinite 02.png?VersionId=p7i2kT35acdQMjadOTzUESThGt
98 xt detail 01.png?VersionId=MwBHVKlGgtBNumW.NM
98 xt detail 02.png?VersionId=WpyCIy1aNgWeWwIIy
mino
storage
98 xt dark 01.png?VersionId= 98 xt dark 02.png?VersionId=VT9Q 9N0NLqjHlK 4d9V5 98 xt lunar 01 98 xt lunar 02 98 xt axinite 01 98 xt axinite 02.png?VersionId=aPdDHvr4He2svFhsnJD0cQKw 98 xt detail 01 98 xt detail 02 mino storage
Related:
Trek
Where To Buy
Free standard shipping on all bikes (continental U.S. only).
Flat rate shipping to Hawaii and Alaska.
Free standard shipping on all bikes (continental U.S. only).
Flat rate shipping to Hawaii and Alaska.
$6,249.99
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.

Specifications

Product

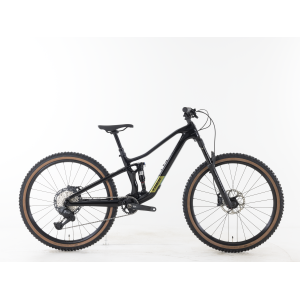

Trek Top Fuel 9.8 XT Gen 4 Bike
Model Year
2025
Riding Type
Cross Country
Trail
Rider
Unisex
Sizes and Geometry
SM (High, Low)
MD (High, Low)
ML (High, Low)
LG (High, Low)
XL (High, Low)
Wheel Size
27.5" (650b)
29"
Frame Material
Carbon Fiber
Frame Material Details
OCLV Mountain Carbon front and rear triangles, OCLV Next rocker link, molded chainstay protection, bolt-on dual-density down tube guard
Rear Travel
120mm
Rear Shock
RockShox Deluxe Ultimate RCT, 185mm length x 50mm stroke
Fork
RockShox Pike Select+, DebonAir spring, Charger 3.1 RC2 damper, 35mm stanchions, 44mm offset, Maxle Stealth thru-axle
Fork Travel
130mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset

Handlebar
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 820mm width, 27.5mm rise
Stem
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0° rise
Virtual length: 35mm (SM), 45mm (MD-XL)
Grips
Bontrager XR Trail Elite, nylon lock-on
Brakes
Shimano Deore XT M8120, 4-piston, Shimano RT86 180mm 6-bolt rotors
Brake Levers
Shimano Deore XT M8120
Drivetrain
1x
Shifters
Shimano Deore XT M8100, 12-speed
Front Derailleur
None
Rear Derailleur
Shimano Deore XT M8100, 12-speed, long cage
ISCG Tabs
ISCG05 front two bolts
Chainguide
None
Cranks
Shimano Deore XT M8120, 170mm length
Chainrings
Shimano Deore XT M8120, 30 tooth
Bottom Bracket
Shimano MT501, 73mm English/BSA threaded
Pedals
None
Chain
Shimano Deore XT M8100, 12-speed
Cassette
Shimano Deore XT M8100, 12-speed, 10-51 tooth
Rims
Bontrager Line Comp 30, high strength 6000 Series alloy, tubeless ready
Hubs
Bontrager Line Comp wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with Rapid Drive 108 freehub and MICRO SPLINE driver
Spokes
Bontrager Line Comp wheelset
Tires
SM: Bontrager Gunnison RSL XT, triple compound, aramid bead, 120 TPI, tubeless ready, 27.5" x 2.4"
MD-XL Front: Bontrager Gunnison RSL XT, triple compound, aramid bead, 120 TPI, tubeless ready, 29" x 2.4"
MD-XL Rear: Bontrager Montrose RSL XT, triple compound, aramid bead, 120 TPI, tubeless ready, 29" x 2.4"
Saddle
Bontrager Verse Short Comp, steel rails, 145mm width
Seatpost
Bontrager Line dropper, MaxFlow
Drop: 100mm (SM), 170mm (MD-XL)
Seatpost Diameter
34.9mm
Seatpost Clamp
Single bolt
Rear Dropout / Hub Dimensions
12mm x 148mm (Boost)
Max. Tire Size
2.5"
Bottle Cage Mounts
One inside front triangle
Colors
Matte Dark Web, Lunar Silver, Axinite Flip
Warranty
Lifetime frame; 2 years Trek/Bontrager parts, suspension linkage components, and paint/decals
Weight

Miscellaneous
• ABP (Active Braking Pivot) rear suspension design
• SM has 27.5" wheels; MD-XL have 29" wheels
• Geometry (High/Low) and rear suspension leverage rate (More/Less progressive) adjustable via Mino Link 4 flip chip in lower shock mount
• All sizes compatible with mixed ("Mullet") setups (29" front, 27.5" rear) by using 140mm travel fork and Mino Link 4 flip chip in High position
• Internal frame storage compartment in down tube; includes Bontrager BITS storage bag
• Guided internal cable routing
• SRAM UDH (Universal Derailleur Hanger)
• Convertible to 130mm rear travel with longer-stroke shocks
• Frame weight, size MD: 5.5 lb (2500 g)
• Includes Bontrager TLR tubeless rim strips, sealant, and valves
Price
$6,249.99
