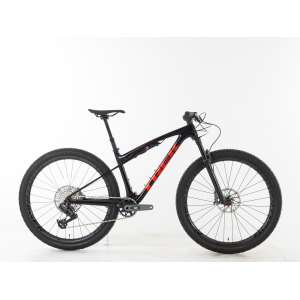

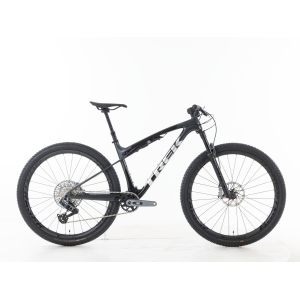

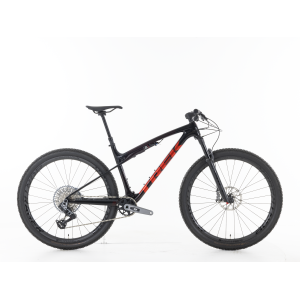

2024 Trek Supercaliber SLR 9.8 GX AXS Gen 2 Bike

98 gx smoke 01
98 gx smoke 01
98 gx smoke 02
98 gx red 01
98 gx red 02.png?VersionId=M68fQ
98 gx detail 01.png?VersionId=KyEHkMhnfGKmp0
98 gx detail 02.png?VersionId=9V fsRLf1ltqnSHnVlD07yhyi
98 xx detail 03.png?VersionId=.3.V6uG
98 gx detail 04.png?VersionId=eUKNqTb7V17qaB
98 gx smoke 01 98 gx smoke 02.png?VersionId=5ybaga9FdGr EZUOMCWmC0iGbA 98 gx red 01.png?VersionId= 98 gx red 02 98 gx detail 01 98 gx detail 02.png?VersionId=VDRxO4 UcLEJgd75tm78b IBJEWGm5 98 xx detail 03.png?VersionId=k5 D3POx 98 gx detail 04
Related:
Trek
Where To Buy
Free standard shipping on all bikes (continental U.S. only).
Flat rate shipping to Hawaii and Alaska.
Free standard shipping on all bikes (continental U.S. only).
Flat rate shipping to Hawaii and Alaska.
$7,349.99
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.

Specifications

Product
Trek Supercaliber SLR 9.8 GX AXS Gen 2 Bike
Model Year
2024
Riding Type
Cross Country
Rider
Unisex
Sizes and Geometry
SM
MD
ML
LG
XL
Wheel Size
29"
Frame Material
Carbon Fiber
Frame Material Details
SLR OCLV Mountain Carbon high modulus layup front triangle, OCLV Mountain Carbon rear triangle, molded chainstay protection, 3M adhesive film on the underside of the downtube
Rear Travel
80mm
Rear Shock
RockShox SIDLuxe Trek IsoStrut, RockShox TwistLoc Ultimate 2-position dual remote lockout
Fork
RockShox SID, DebonAir spring, Rush RL damper, RockShox TwistLoc Ultimate 2-position dual remote lockout, 44mm offset, 35mm stanchions, Maxle Stealth thru-axle
Fork Travel
110mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
FSA IS-2
Handlebar
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 750mm width, zero rise
Stem
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 13° drop
Virtual length: 70mm (SM-ML), 80mm (LG), 90mm (XL)
Grips
Foam
Brakes
SRAM Level Bronze Stealth, 4-piston, SRAM CenterLine 6-bolt rotors (180mm front, 160mm rear) with round edges
Brake Levers
SRAM Level Bronze Stealth, tool-free Reach Adjust
Drivetrain
1x
Shifters
SRAM Eagle Pod Controller, 12-speed, AXS electronic wireless
Front Derailleur
None
Rear Derailleur
SRAM GX Eagle Transmission, 12-speed, AXS electronic wireless
ISCG Tabs
None
Chainguide
None
Cranks
SRAM GX Eagle Transmission Alloy DUB
Length: 170mm (SM/MD), 175mm (ML-XL)
Chainrings
SRAM GX Eagle Transmission, 34 tooth
Bottom Bracket
SRAM DUB, 92mm PressFit
Pedals
None
Chain
SRAM GX Eagle Transmission, 12-speed
Cassette
SRAM GX Eagle Transmission XS-1275, 12-speed, 10-52 tooth
Rims
Bontrager Kovee Elite 30, OCLV Mountain Carbon, tubeless ready
Hubs
Bontrager Kovee Elite wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with Rapid Drive 108 freehub and XD driver
Spokes
Bontrager Kovee Elite wheelset
Tires
Bontrager Sainte-Anne RSL XR, dual compound, aramid bead, 220 TPI, tubeless ready, 29" x 2.4"
Saddle
Bontrager Verse Elite, austenite rails, 145mm width
Seatpost
Bontrager Line dropper
Drop: 100mm (SM), 125mm (MD/ML), 150mm (LG/XL)
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt
Rear Dropout / Hub Dimensions
12mm x 148mm (Boost)
Max. Tire Size
29" x 2.4"
Bottle Cage Mounts
Two inside front triangle
Colors
Carbon Red Smoke, Deep Smoke
Warranty
Lifetime frame and wheels; 2 years rear suspension linkage components, Trek/Bontrager parts, and paint/decals
Weight
24 lb 13.9 oz (11280 g)
Miscellaneous
• IsoStrut rear suspension design with pivotless seat stays
• Internal cable routing; includes lightweight foam cable tubing
• SRAM UDH (Universal Derailleur Hanger)
• Includes Bontrager TLR tubeless rim strips, valve stems, and sealant
• Includes SRAM AXS battery charger
• Weight given for size MD set up tubeless
Price
$7,349.99
