Specifications

Product

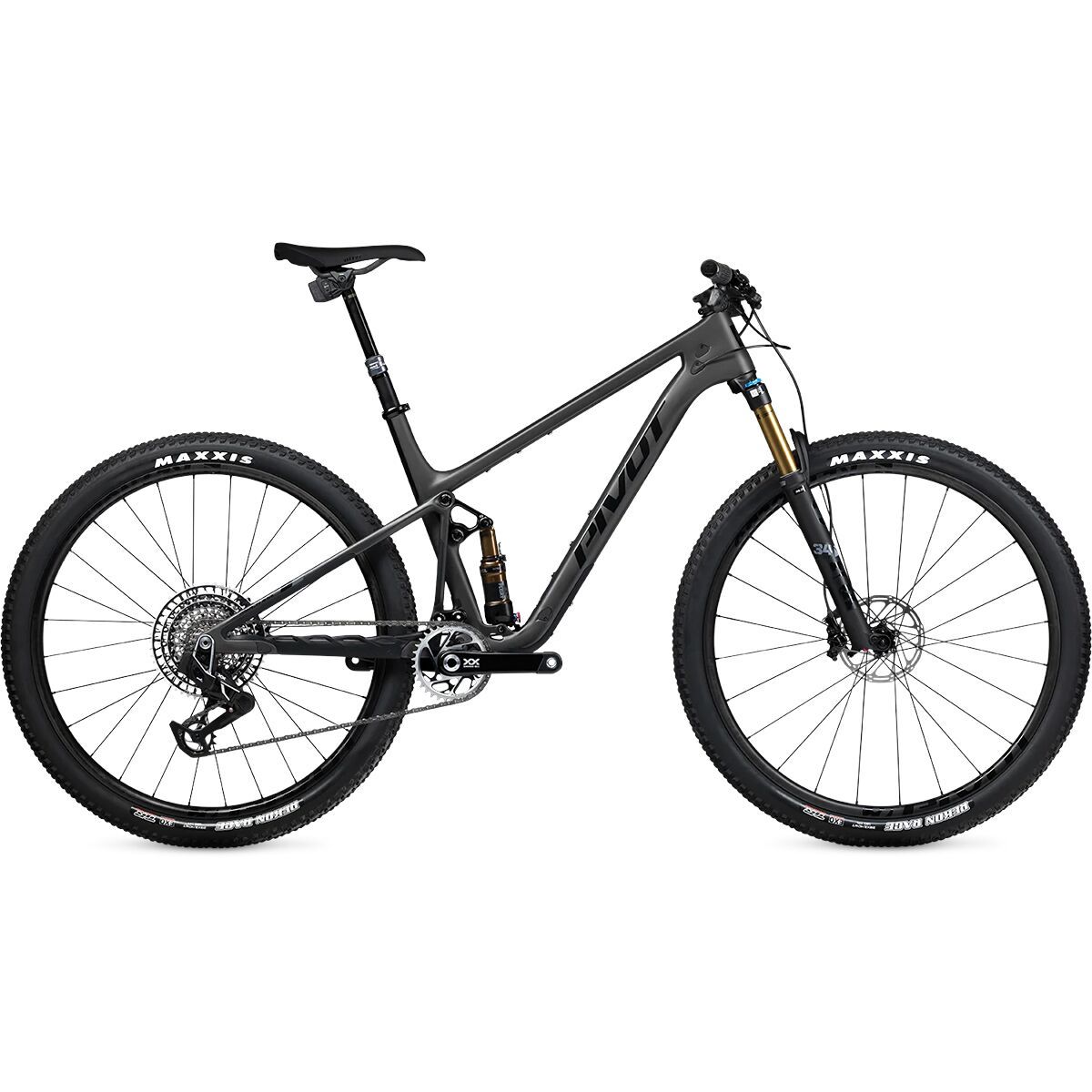

Pivot Mach 4 SL World Cup XX SL Eagle Transmission Bike
Model Year
2023
Riding Type
Cross Country
Rider
Unisex
Sizes and Geometry
XS
SM
MD
LG
XL
Wheel Size
29"
Frame Material
Carbon Fiber
Frame Material Details
Hollow Core carbon fiber front and rear triangles, size-specific carbon layups; injection-molded rubberized down tube, seatstay, and chainstay protection
Rear Travel
Setting one: 95mm
Setting two: 103mm
Rear Shock
FOX FLOAT DPS Factory, TwistLoc remote lockout, Kashima coating, 190mm length x 40mm stroke
Fork
FOX FLOAT 32 Step-Cast (SC) Factory, FIT4 damper, TwistLoc remote lockout, Kashima coating, 44mm offset
Fork Travel
100mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
Pivot Precision, sealed integrated cartridge bearings
Handlebar
Phoenix Team Flat Carbon, 760mm width
Stem
Phoenix Team XC/Trail
Grips
SRAM TwistLoc
Brakes
SRAM Level Ultimate Stealth, 2-piston, SRAM CenterLine 160mm CENTER LOCK rotors
Brake Levers
SRAM Level Ultimate Stealth, carbon blade
Drivetrain
1x
Shifters
SRAM Eagle Pod Ultimate Controller, 12-speed, AXS electronic wireless
Front Derailleur
None
Rear Derailleur
SRAM XX SL Eagle Transmission, 12-speed, AXS electronic wireless
ISCG Tabs
ISCG05 upper two tabs
Chainguide
None
Cranks
SRAM XX SL Eagle Transmission Carbon DUB
Chainrings
SRAM XX SL Eagle Transmission, 34 tooth
Bottom Bracket
SRAM DUB, 92mm PressFit
Pedals
None
Chain
SRAM XX SL Eagle Transmission, 12-speed
Cassette
SRAM XX SL Eagle Transmission XS-1299, 12-speed, 10-52 tooth
Rims
Reynolds Blacklabel XC Carbon, 309 30mm-width front, 289 28mm-width rear
Hubs
Industry Nine Hydra, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with XD driver
Spokes

Tires
Maxxis Rekon Race, EXO casing, TR, 120 TPI, 29" x 2.4"
Saddle
WTB Volt World Cup Phoenix, narrow width, carbon rails
Seatpost
FOX Transfer SL Factory dropper, Kashima coating, 100mm drop
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt, 36.4mm
Rear Dropout / Hub Dimensions
12mm x 148mm (Boost)
Max. Tire Size
29" x 2.4"
Bottle Cage Mounts
One inside front triangle, one under down tube, plus accessory mounts under top tube; compatible with Pivot Dock Tool System
Colors
Ice Blue, Seafoam Green
Warranty
10 years frame, 5 years Pivot/Phoenix components, 1 year paint/finish/bearings
Weight

Miscellaneous
• XC-Tuned dw-link rear suspension design
• Rear travel adjustable via flip chip in linkage/upper shock mount
• Internal cable routing with Pivot Cable Port System
• Compatible with SRAM UDH (Universal Derailleur Hanger)
• Frame weights start at 1660g (3.65lbs)
• Photos may show alternate builds
Price
$10,999.00
