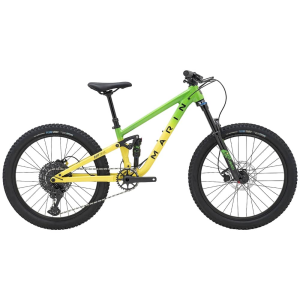

2025 Marin Rift Zone 26" Bike

Related:

Specifications

Product
Marin Rift Zone 26" Bike
Model Year
2025
Riding Type
Trail
Rider
Kids
Sizes and Geometry
One Size
Wheel Size
26"
Frame Material
Aluminum
Frame Material Details
Series 3 6061 aluminum, molded chainstay protection
Rear Travel
130mm
Rear Shock
X-Fusion O2 Pro R, air spring, custom tune, 190mm length x 45mm stroke
Fork
X-Fusion Velvet RLC, air spring, compression adjust, rebound adjust, 42mm offset
Fork Travel
130mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
FSA No.57E, semi-sealed cartridge bearings
Handlebar
Marin Mini-Riser, 6061 double-butted aluminum, 720mm width, 15mm rise, 4° upsweep, 9° backsweep
Stem
Marin, 3D-forged alloy, 35mm
Grips
Marin dual density
Brakes
Tektro HD-M280, 2-piston, CENTER LOCK rotors (180mm front, 160mm rear)
Brake Levers
Tektro HD-M280
Drivetrain
1x
Shifters
Shimano Deore M5100, 11-speed
Front Derailleur
None
Rear Derailleur
Shimano Deore M5100, 11-speed, SGS cage
ISCG Tabs
ISCG05
Chainguide
None
Cranks
Marin forged alloy, 170mm length
Chainrings
Marin steel, 32 tooth, narrow/wide profile
Bottom Bracket
External, sealed cartridge bearings, 73mm English/BSA threaded
Pedals
None
Chain
KMC X-11, 11-speed
Cassette
SunRace, 11-speed, 11-51 tooth
Rims
Marin, double wall aluminum, 27mm inner width, pinned joint, 32 hole
Hubs
Front: Shimano TC500, 15mm x 100mm
Rear: forged alloy, quad sealed bearings, 141mm
Spokes
14g stainless steel
Tires
VEE Tire Co. Flow Snap, Tackee compound, wire bead, 26" x 2.4"
Saddle
Marin Speed Concept
Seatpost
Marin alloy
Seatpost Diameter
30.9mm
Seatpost Clamp
Quick release
Rear Dropout / Hub Dimensions
141mm
Max. Tire Size

Bottle Cage Mounts
One inside front triangle
Colors
Teal/Black
Warranty
5 years frame; 1 year components, paint and decals
Weight

Miscellaneous
• MultiTrac single pivot rear suspension design
• Internal cable routing with internal dropper seatpost routing
• Convertible to 24" wheels
Price
$1,699.00
