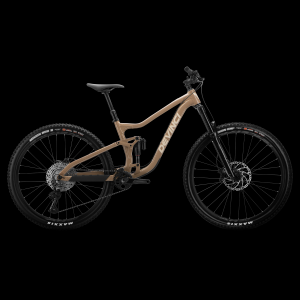

2024 Devinci Troy Aluminum Deore 12S Bike

a deore gold.png?VersionId=qmIHf0dVzDEutxPmY3IyIDnqw3wUPM

a deore red.png?VersionId=bIB39LwcJlgckdH

a deore red.png?VersionId= TFyv3v8kklRGEoo2ab7czB5jU0L

Where To Buy
	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes
	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes

Specifications

Product

Devinci Troy Aluminum Deore 12S Bike

Model Year

2024

Riding Type

Trail

Enduro / All-Mountain

Rider

Unisex

Sizes and Geometry

SM (Lo, Hi)

MD (Lo, Hi)

LG (Lo, Hi)

XL (Lo, Hi)

Size	SM (Lo, Hi)	MD (Lo, Hi)	LG (Lo, Hi)	XL (Lo, Hi)
Top Tube Length	574mm, 573mm	598mm, 597mm	626mm, 625mm	655mm, 654mm
Head Tube Angle	65.0°, 65.5°	65.0°, 65.5°	65.0°, 65.5°	65.0°, 65.5°
Head Tube Length	95mm	105mm	115mm	125mm
Seat Tube Angle	77.6°, 78.1°	77.5°, 78.0°	76.9°, 77.4°	76.4°, 76.9°
Seat Tube Length	400mm	420mm	445mm	495mm
Bottom Bracket Height	341mm, 348mm	341mm, 348mm	341mm, 348mm	341mm, 348mm
Chainstay Length	435mm, 433mm	435mm, 433mm	440mm, 438mm	445mm, 443mm
Wheelbase	1190mm, 1189mm	1215mm, 1213mm	1244mm, 1243mm	1273mm, 1272mm
Standover	735mm, 740mm	736mm, 741mm	755mm, 760mm	788mm, 793mm
Reach	440mm, 445mm	460mm, 465mm	480mm, 485mm	500mm, 505mm
Stack	612mm, 608mm	621mm, 617mm	631mm, 626mm	640mm, 635mm
Additional Info	Geometry adjustable via two-position flip chip in lower shock mount

Wheel Size

29"

Frame Material

Aluminum

Frame Material Details

Aluminum Optimum G04 6066-T6 alloy, molded chainstay protection, high-density molded polyurethane down tube rock guard protection

Rear Travel

140mm

Rear Shock

RockShox Super Deluxe Select R, DebonAir spring, trunnion mount, 185mm length x 52.5mm stroke

Fork

RockShox Revelation RC, DebonAir spring, 35mm stanchions, 42mm offset

Fork Travel

150mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

FSA Orbit 1.5 Zero Stack

Handlebar

V2 Pro, 780mm width, 15mm rise, 35mm clamp diameter

Stem

V2 Pro, 50mm length, 0° rise, 35mm bar clamp

Grips

Devinci Performance, lock-on

Brakes

Shimano MT520, 4-piston, Shimano RT66 203mm 6-bolt rotors

Brake Levers

Shimano MT501

Drivetrain

Shifters

Shimano Deore M6100, 12-speed, I-SPEC EV mounting bracket

Front Derailleur

None

Rear Derailleur

Shimano Deore M6100, 12-speed

ISCG Tabs

ISCG05 two-bolt

Chainguide

None

Cranks

Shimano Deore M6130

Chainrings

Shimano Deore M6130, 32 tooth

Bottom Bracket

Shimano MT501, 73mm English/BSA threaded

Pedals

None

Chain

KMC X12, 12-speed

Cassette

Shimano Deore M6100, 12-speed, 10-51 tooth

Rims

Race Face AR30, 30mm inner width, tubeless ready

Hubs

Novatec, D791SB-B15 15mm x 110mm (Boost) front, DH92SB-MS 12mm x 157mm (SuperBoost+) rear with MICRO SPLINE driver

Spokes

Sapim, stainless steel, 14g, with Nylok

Tires

Front: Maxxis Minion DHF, 3C MaxxTerra compound, EXO casing, TR, 29" x 2.5" WT
Rear: Maxxis Minion DHR II, 3C MaxxTerra compound, EXO casing, TR, 29" x 2.4" WT

Saddle

Devinci

Seatpost

TranzX dropper, 1x remote lever

Seatpost Diameter

34.9mm

Seatpost Clamp

Single bolt, CNC alloy, 38.6mm

Rear Dropout / Hub Dimensions

12mm x 157mm (SuperBoost+)

Max. Tire Size

29" x 2.6"

Bottle Cage Mounts

One inside front triangle

Colors

Goldland Gloss, Red DNA Gloss, Oak Brown Gloss

Warranty

Lifetime frame; 1 year pivots, paint, and decals

Weight

34 lb 5.9 oz (15590 g)

Miscellaneous

• Split Pivot rear suspension design
• Geometry adjustable via two-position flip chip in lower shock mount
• External cable routing
• Weight given for size MD

Price

$3,399.00
