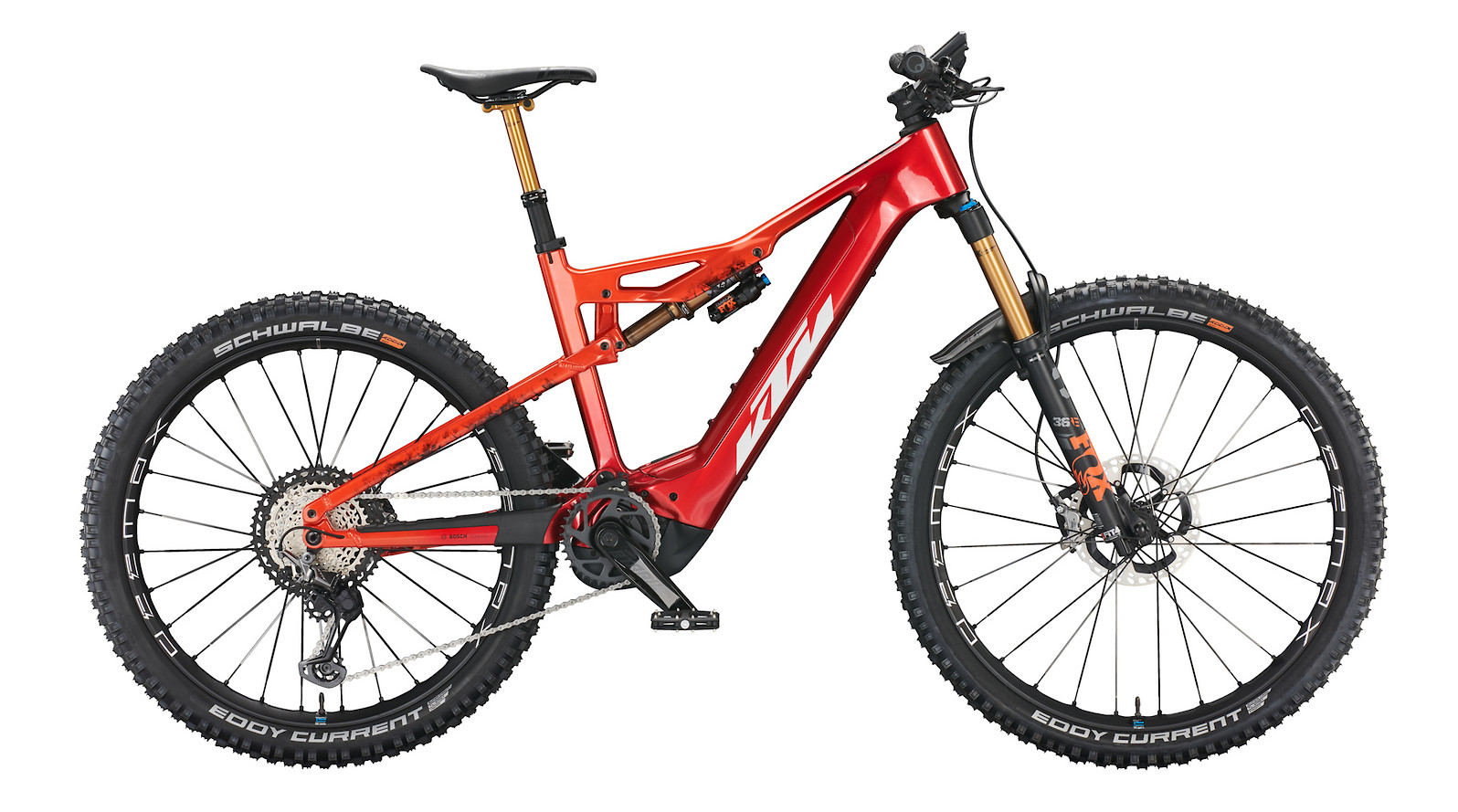

2022 KTM Macina Kapoho Prestige E-Bike

(discontinued)

Discontinued

Where To Buy
	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available E-Bikes
	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available E-Bikes

Specifications

Product

KTM Macina Kapoho Prestige E-Bike

Model Year

2022

Riding Type

Enduro / All-Mountain

Rider

Unisex

Sizes and Geometry

Size	MD	LG	XL
Top Tube Length	590mm	610mm	630mm
Head Tube Angle	65°	65°	65°
Head Tube Length	100mm	110mm	125mm
Seat Tube Angle	76°	76°	76°
Seat Tube Length	430mm	450mm	480mm
Bottom Bracket Height	7mm drop	7mm drop	7mm drop
Chainstay Length	442mm	442mm	442mm
Wheelbase	1214mm	1236mm	1259mm
Standover	796mm	799mm	801mm
Reach	445mm	463mm	480mm
Stack	603mm	612mm	626mm
Additional Info	Mixed ("Mullet") wheels: 29" front, 27.5" rear

Wheel Size

27.5+

29"

Other

E-Bike Class

Class 1: Pedal Assist (Pedelecs)

Motor

Bosch Performance CX Gen.4, 85Nm max torque

Battery

Bosch PowerTube, lithium-ion, integrated, removable via PowerTube Top Loader (PTTL)

Battery Capacity

750 Wh

Display/Remote

Bosch Smart System with Kiox TFT display and handlebar-mounted remote

Modes

Turbo, Sport/eMTB, Tour, Eco, Walk Assist

Max Speed with Assist

15.6 mph (25 km/h)

Frame Material

Carbon Fiber

Frame Material Details

Performance Carbon front triangle, alloy rear triangle, molded chainstay protection

Rear Travel

160mm

Rear Shock

FOX FLOAT X Factory, Kashima coating, 250mm x 70mm

Fork

FOX FLOAT 36 Factory E-Bike, FIT4 damper, Kashima coating

Fork Travel

160mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

ACROS AICR internal, angle limit

Handlebar

KTM Prime Trail Carbon, 800mm width, 20mm rise, 35mm clamp diameter

Stem

KTM Team Trail, 35mm bar clamp, with Kiox display mount

Grips

Ergon GE10 Evo ergonomic

Brakes

Shimano XTR M9120, 4-piston, Shimano CENTER LOCK ICE TECH FREEZA rotors (MT900 203mm front, EM910 180mm rear)

Brake Levers

Shimano XTR M9100

Drivetrain

Shifters

Shimano XTR M9100, 12-speed

Front Derailleur

None

Rear Derailleur

Shimano XTR M9100, 12-speed, SHADOW RD+, SGS cage

Chainguide

Upper slider

Cranks

KTM Trail, ISIS, 160mm length

Chainrings

FSA Megatooth, steel, direct mount, 36 tooth

Pedals

VP-539 nylon flat

Chain

Shimano Deore XT M8100, 12-speed

Cassette

Shimano Deore XT M8100, 12-speed, 10-51 tooth

Rims

Mavic E-Deemax S wheelset, tubeless ready

Hubs

Mavic E-Deemax S wheelset, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver

Spokes

Mavic E-Deemax S wheelset

Tires

Front: Schwalbe Eddy Current, Evo, SuperTrail, TLE, 29" x 2.5"
Front: Schwalbe Eddy Current, Evo, SuperGravity, TLE, 27.5" x 2.8"

Saddle

Selle San Marco GND Supercomfort

Seatpost

FOX Transfer Factory dropper

Seatpost Diameter

Seatpost Clamp

Single bolt

Rear Dropout / Hub Dimensions

12x148mm Boost

Max. Tire Size

Bottle Cage Mounts

One inside front triangle

Colors

Chrome Red/Fire Orange/White/Black

Warranty

5 years frame, 2 years motor/battery/display

Weight

55 lb 16.0 oz (25,400 g)

Miscellaneous

• Straight-Line-Link (SLL) rear suspension design
• Mixed ("Mullet") wheels: 29" front, 27.5" rear
• Internal cable routing
• Includes Bosch Standard 4A battery charger
• Power settings customizable via Bosch Flow App
