2022 Giant Reign E+ 1 E-Bike
(discontinued)
Discontinued
| Where To Buy | |||
|---|---|---|---|
|
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply. |
||
|
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply. |
||
1 member reviews
2022 Reign E+1 - My thoughts
The Good
Absolute bruiser of a bike - can ride anything and have taken it to Maydena and Derby in Tasmania where it had no limits. Great spec for price - I paid $8k AU on a run out model. Fox performance elite kit.
The Bad
Heavy - i own and XL so that doesn't help but compared to friends Levo's and even kenovo with Boxxers this bike is heavy.
The Giant brand wheels are brutl to ride, vey harsh. My frame developed a crack on bottom shock mount - frame replaced under warranty.I also find it quite noisy - The Yamaha motor has a lot of free play / clutch, and coupled with the slow engagaement hub tere tends to be a drivetrain clunk when under power. Noticeable on rough tracks where suspsension compresses and you pedal hard for instance out of a corner. The large downtube enhances the noise - find some foam asap.
The Giant brand wheels are brutl to ride, vey harsh. My frame developed a crack on bottom shock mount - frame replaced under warranty.I also find it quite noisy - The Yamaha motor has a lot of free play / clutch, and coupled with the slow engagaement hub tere tends to be a drivetrain clunk when under power. Noticeable on rough tracks where suspsension compresses and you pedal hard for instance out of a corner. The large downtube enhances the noise - find some foam asap.
Overall Review:
My first e bike - I aslo own a Nukeproof reactor trail bike and megaenduro bike so figured e bike purchase go big or go home. Absolute beast of a bike and actually rides pretty well even on flatter stuff. I find the weight is manageable, but i do weigh 102kg + kit so large guy. If you were 80kg or lighter could be hard to muscle bike around. The weight means this thing rails corners and rough trail like nothing - yes it can pluogh through most things but the Gaint brand wheels will make you pay. They tend to PING off things and have read this in reviews before. If yourlike me the back wheels will die within a few months and replace ith with something more forgiving. I ahve added carbon bars, DEITY kit and a few other things to drop a bit of weight - seriously thinking of carbon wheels and lightrer tyres but thats a future plan. Started with grey bike, now have the dark green frame after a warrantry due to small frame crack - great service from GIANT to rectify. FOX performance elite, Deore XT kit and brakes - great value.
Specifications
Product

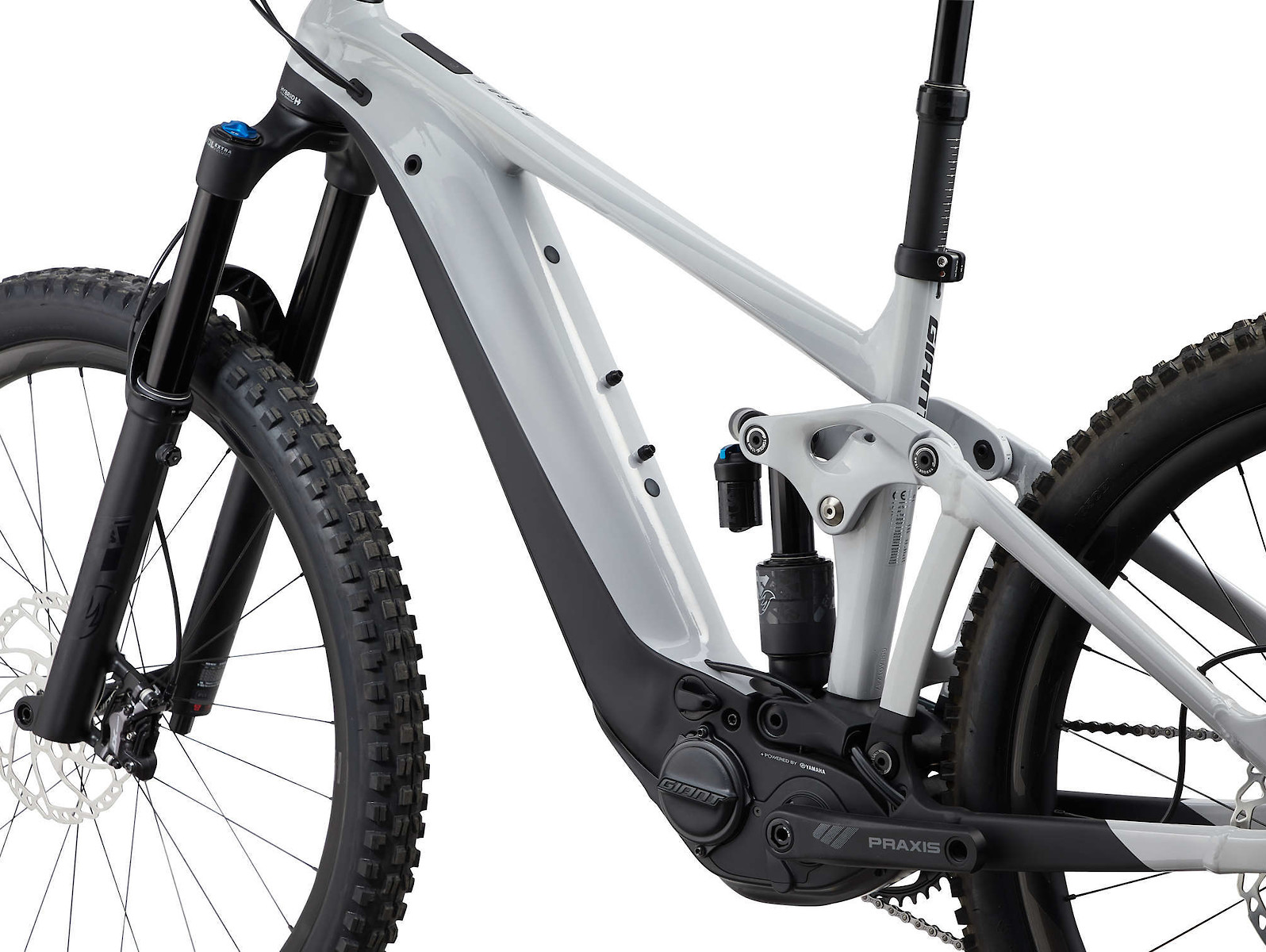

Giant Reign E+ 1 E-Bike
Model Year
2022
Riding Type
Enduro / All-Mountain
Freeride / Bike Park
Rider
Unisex
Sizes and Geometry
SM (low, high)
MD (low, high)
LG (low, high)
XL (low, high)
Wheel Size
27.5" (650b)
29"
Other: Mullet
E-Bike Class
Class 1: Pedal Assist (Pedelecs)
Motor
Giant SyncDrive Pro (powered by Yamaha), 85Nm max torque
Battery
Giant EnergyPak Smart, integrated; EnergyPak Plus range extender compatible
Battery Capacity
625 Wh
Display/Remote
Display: Giant RideControl GO, frame integrated LED display, ANT+ wireless display compatible
Remote: Giant RideControl Ergo 3, grip integrated
Remote: Giant RideControl Ergo 3, grip integrated
Modes
Three support modes
Max Speed with Assist
20 mph (32 km/h)
Frame Material
Aluminum
Frame Material Details
ALUXX SL-grade 6011 aluminum alloy, Advanced Forged Composite Upper Rocker, molded chainstay and down tube protection
Rear Travel
160mm
Rear Shock
FOX FLOAT X2 Performance Elite, EVOL sleeve, 2-position lever, trunnion mount, custom tune, 205mm x 62.5mm
Fork
FOX FLOAT 38 Performance Elite, GRIP2 VVC damper, e-Bike optimized, Kabolt axle, 44mm offset
Fork Travel
170mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
Stem
Giant Contact SL, 35mm bar clamp
Length: 40mm (SM/MD), 50mm (LG/XL)
Length: 40mm (SM/MD), 50mm (LG/XL)
Grips
Giant Tactal Pro-E, single lock-on
Brakes
Shimano Deore XT M8120, 4-piston, 203mm rotors
Brake Levers
Shimano Deore XT M8100, I-SPEC EV clamps
Drivetrain
1x
Shifters
Shimano Deore XT M8100, 12-speed
Front Derailleur
None
Rear Derailleur
Shimano Deore XT M8100, 12-speed, SHADOW RD+
Chainguide
MRP 1x HD2 custom co-molded upper slider
Cranks
Praxis e-Cadet+, custom forged
Length: 160mm (SM/MD), 165mm (LG/XL)
Length: 160mm (SM/MD), 165mm (LG/XL)
Chainrings
Praxis Wave, cold-forged 4130 premium steel, 36 tooth
Pedals
Platform
Chain
KMC e.12 Turbo, EcoProteq, e-bike optimized, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Rims
Giant e-TR1 wheelset, tubeless ready, 30mm inner width
Hubs
Giant e-TR1 wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Spokes
Giant e-TR1 wheelset
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, foldable, 29" x 2.6”
Rear: Maxxis High Roller II, 3C MaxxTerra, Double Down (DD) casing, TR, foldable, 27.5" x 2.5”
Rear: Maxxis High Roller II, 3C MaxxTerra, Double Down (DD) casing, TR, foldable, 27.5" x 2.5”
Saddle
Giant Romero Trail
Seatpost
Giant Contact Switch dropper
Drop: 100mm (SM), 125mm (MD), 150mm (LG), 170mm (XL)
Drop: 100mm (SM), 125mm (MD), 150mm (LG), 170mm (XL)
Seatpost Diameter
30.9mm
Seatpost Clamp
Single bolt
Rear Dropout / Hub Dimensions
148x12mm Boost
Max. Tire Size
Bottle Cage Mounts
One inside front triangle
Colors
Good Grey
Warranty
Lifetime frame, 1 year paint and components
Weight
Miscellaneous
• Maestro rear suspension system
• Mixed ("Mullet") wheels: 29" front, 27.5" rear
• Geometry adjustable via flip chip
• Internal cable routing
• SRAM UDH (Universal Derailleur Hanger)
• Drive system tuneable/controlled by Giant E-Bike app, which provides navigation, health, and fitness functions
• Includes tubeless kit (sealant, valves, levers, manual, tool)
• Giant EnergyPak Plus range extender Compatible
• Giant Recon series e-bike lights (available separately) are direct-connectible
• Canadian price: 8199 CAD
• Mixed ("Mullet") wheels: 29" front, 27.5" rear
• Geometry adjustable via flip chip
• Internal cable routing
• SRAM UDH (Universal Derailleur Hanger)
• Drive system tuneable/controlled by Giant E-Bike app, which provides navigation, health, and fitness functions
• Includes tubeless kit (sealant, valves, levers, manual, tool)
• Giant EnergyPak Plus range extender Compatible
• Giant Recon series e-bike lights (available separately) are direct-connectible
• Canadian price: 8199 CAD
Price
More Info
