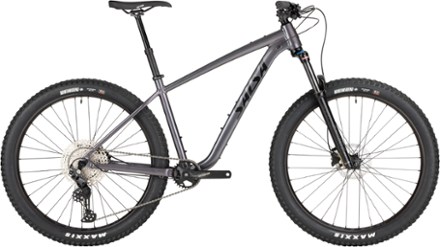

2022 Salsa Rangefinder Deore 11 27.5+ Bike

s1600 photo 775083.jpg?VersionId=522mbBtBW1L2cmuO

s1600 photo 501732.jpg?VersionId=3DYHTJRCzI3NGHVCL1MLLRoiQnYb

Where To Buy
	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes
	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes
	Free standard shipping on orders of $50 or more (U.S. only). International shipping available. Free on orders of $150 or more. Some exclusions apply.	Browse available Bikes

Specifications

Product

Salsa Rangefinder Deore 11 27.5+ Bike

Model Year

2022

Riding Type

Cross Country

Trail

Rider

Unisex

Sizes and Geometry

Size	XS	SM	MD	LG	XL
Top Tube Length	568.2mm	590.5mm	614.8mm	643.5mm	670.1mm
Head Tube Angle	68°	68°	68°	68°	68°
Head Tube Length	95mm	100mm	105mm	115mm	125mm
Seat Tube Angle	74°	74°	74°	74°	74°
Seat Tube Length	355mm	381mm	431mm	470mm	508mm
Bottom Bracket Height	58mm drop	58mm drop	58mm drop	58mm drop	58mm drop
Chainstay Length	439mm	439mm	439mm	439mm	439mm
Wheelbase	1100.6mm	1123.4mm	1148.3mm	1178.0mm	1205.8mm
Standover	678.6mm	698.3mm	737.2mm	769.1mm	798.7mm
Reach	395mm	416mm	439mm	465mm	489mm
Stack	605.6mm	610.2mm	614.9mm	624.2mm	633.4mm

Wheel Size

27.5+

Frame Material

Aluminum

Frame Material Details

6061-T6 double- and triple-butted tubing

Rear Travel

Hardtail

Rear Shock

None

Fork

SR Suntour XCR32 LOR Air or RST Aerial MLC Air

Fork Travel

120mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

FSA Orbit No.57B, ZS44 upper, ZS56 lower

Handlebar

XS/SM: Salsa Salt Flat, 750mm width, 31.8mm clamp diameter
MD/LG/XL: Salsa Rustler, 800mm width, 31.8mm clamp diameter

Stem

Salsa Guide, 60mm length, 6° rise, 31.8mm clamp

Grips

Salsa File Tread

Brakes

Shimano MT200 or Promax DSK-925, Shimano RT10 160mm CENTER LOCK rotors

Brake Levers

Shimano MT200 or Promax DSK-925

Drivetrain

Shifters

Shimano Deore M5100, 11-speed

Front Derailleur

None

Rear Derailleur

Shimano Deore M5100, 11-speed, SGS cage

ISCG Tabs

None

Chainguide

None

Cranks

FSA Alpha Drive
Length: 170mm (XS/SM), 175mm (MD/LG/XL)

Chainrings

FSA, 30 tooth

Bottom Bracket

FSA, 73mm English/BSA threaded

Pedals

None

Chain

Shimano HG601, 11-speed

Cassette

Shimano Deore M5100, 11-speed, 11-51 tooth

Rims

WTB ST i40, 40mm inner width, 32 hole

Hubs

Front: Shimano MT400, 110x15mm Boost
Rear: Shimano MT200, 141x10mm quick release

Spokes

Tires

Maxxis Rekon+, EXO, wire bead, 27.5" x 2.8"

Saddle

WTB Volt Medium, steel rails, 142mm width, 265mm length

Seatpost

TranzX YSP18PLQ dropper
Drop: 100mm (XS/XM), 130mm (MD/LG/XL)

Seatpost Diameter

30.9mm

Seatpost Clamp

Single bolt, 35.0mm

Rear Dropout / Hub Dimensions

141x10mm quick release

Max. Tire Size

27.5" x 3.0" or 29" x 2.6"

Bottle Cage Mounts

Two inside front triangle, one under down tube, plus accessory mounts on upper top tube (compatible with Salsa EXP Series Top Tube bag)

Colors

Dark Gray

Warranty

3 years frame and Salsa components

Weight

32 lb 11 oz (14,827 g)

Miscellaneous

• Internal cable routing
• Weight given for size MD
• Compatible with 29" wheels
• Includes rear rack mounts

Price

$1,399.00

More Info

salsacycles.com
