Handmade in Germany, Crossworx Cycles Presents the Dash 275 12

CrossWorx Cycles is a rider-owned company based in the green heart of Germany. Our frames are all designed and built in Thuringia, Germany and are manufactured almost exclusively in house. The Dash275 has 160mm rear suspension travel and after nearly two years of intensive development and field testing, it is finally ready and available.

Our frame and the complete bike configuration are now available in our shop. We are proud to present you the new Crossworx Dash 27.5-inch.

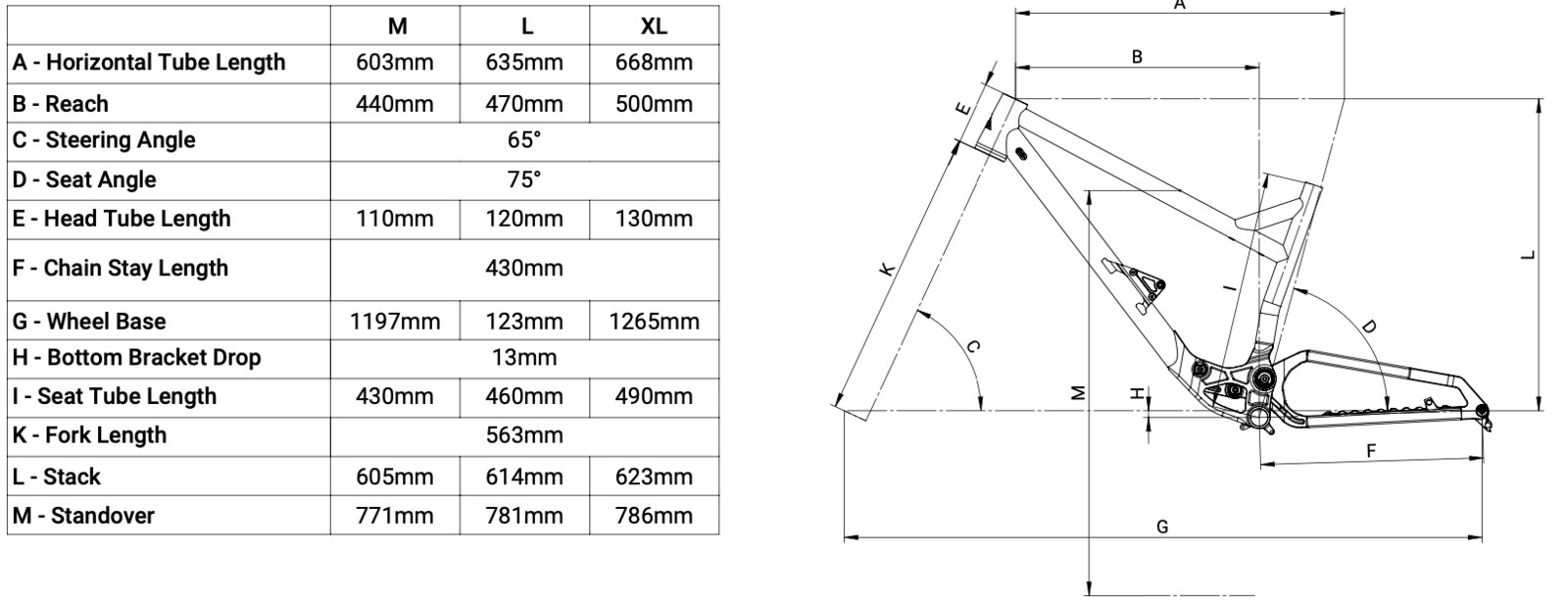

Sizes and Geometry

We offer our Dash in three different sizes. We have the right size for everyone. If our frame should not harmonize with our customers size, we will find a custom sized frame for them.

Kinematics

Our rear triangle concept is based on a supported single pivot-design. At the beginning of the suspension travel, the rear triangle reacts very sensitively and generates a lot of grip even on the smallest bumps. Towards the end there is a progressive increase of the rear travel. Due to the low position in the frame, the rear shock is always well protected and yet easy to reach.

Drink bottle holder

Drinking bottles up to 0.7 liters can be fitted on our Dash.

Sealed bearings (APPS)

To maintain the unique, sensitive performance of our rear triangle for a very long time, we use the proven Acros Pivot Performance Sealing (APPS) bearings for all of our links. This protects the bearings even better against dirt, grime and water.

Integrated cable routing

Cables should always be routed directly through the frame. Brake and shift cables are dipped into the top tube via self-developed plugs and leave the down tube before the rear end transfers the cables back to the chain stay in an attractive way.

Deep-drawn top tube

What is more disturbing than too small legroom? That’s what we thought. So the Dash can be built with all common 30.9 dropper posts and generates enough space due to the deep top tube.

Brake and chain stay protection

We like quiet bikes and always want the best possible protection for our frames. For this reason we have decided to develop our own chainstay. At the same time the brake of the rear wheel enjoys effective protection by our four-edge rear frame. Reachability does not suffer from this.

Key Facts - Frame

• 27.5-inch wheels
• 160 mm front travel
• 160 mm rear travel
• 2.5-inch tire clearance
• Aluminium frame
• Sizes M, L, XL
• Frame kit available with Fox Float DPX2, Float X2, Intend Hover and without shock

Details

• Threaded BB (73 mm BSA)
• ISCG05
• Easy to reach bottle cage mount position (under toptube)
• ACROS extra sealed bearings in all links
• PM 180 mm (max rotorsize: 203 mm)
• 230x65 mm shock size
• 12x148 mm boost rear
• Tapered headtube (ZS44/ZS56)
• Internal cable routing

Pricing and Availability

• Available now: 2399 € w/o shock, incl. VAT
• Colors: Radiant Raw, Gritty Grey, Yawning Yellow, Obese Orange, Tasty Turquoise, Bracing Blue, Grasfresh Green, Vivacious Violet, Beaming Black (+ 0€) or Custom color (+100 €)

Visit the Crossworx site for more information and details on the brand.
